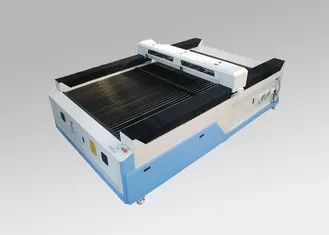

1830×1500×1240mm 1.5KW 750KG 600mm/S CO2 Laser Cutting Machine
Feature
1. With WIFI wireless control system.
2. Specially for thin & soft material smooth and high-speed cutting
3. Protecting sensor can protect the operator from smoke and laser
hurting
4. High precision: equipped with linear Guide Rail, with small
resistance, low machabical vibration.
5. Strong competibility: DSP control system supper windows
XP/7/8/10, virtual printer driver model and Flying cutting.
6. Reci laser tube guarantee high stability and fine laser beam,
lifespan of tube can reach 10 000 hours.
7. Water-cooling system can keep temperature of operation, ensure
laser stable output.
Application
CO2 Laser Engraving Cutting Machine is mainly used to cut thin and soft non-metal materials, such as
leather, fabric, textile, cloth, paper and so on. Of course, this
machine can cut or engrave Acrylic, Bamboo products, Plastic,
Marble, Glass, Woods, PVC, etc.
It can process the plexiglas products, acrylic display panel
lenses, wood carving, advertising products, crystal characters,
packing boxes, models, toys, furniture and so on.
Specifications: 1 This model Laser machine uses blocking design, easy to install
and adjust
2 The machine frame in reason, the materials can put into from the
front and behind,it can Exhaust the smoke on the above and below of
the laser machine.
3 It uses offline control system, English LCD, USB interface,
support CAD and CorelDraw output directly.
|
| Parameter |
| Type | RL-1290 |
| Engraving Area | 1200 x 900mm |
| Laser Power | 60w special for engraving |
| Laser Type | CO2 Laser Tube |
| Engraving speed | 0~1000mm/s |
| Cutting speed | 0~600mm/s |
| Resetting positioning accuracy | 0.01mm |
| Cutting depth | Acryl 0-20mm(other depths depend on other materials) |
| Minimum Shaping Character | 1.5×1.5mm |
| Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
| Gross power | 1200W |
| Software supported | ArtCut, CorelDraw, PhotoShop, AutoCAD |
| Graphic format supported | PLT,DXF,BMP,JPG,GIF,PGN,TIF |
| Engraver for Curve surfaces (Yes/No) | No (we can add an Rotary attachment on the Laser Engrave/Cutting
Machine, then the machine can engrave on Cylinder) |
| Water Cooling: (Yes / No) | Yes |
Maximum Height of Materials to Engrave (mm) | 350mm(Up and down by motor) |
| Laser Tube (life hours) | 3000-10000hours |
| Equipment Dimensions | 1830×1500×1240mm |
| Assistant Equipment | Water pump | Exhaust Fan | Aluminum alloy worktable |
| Optional Spare Parts | RF Tube | Rotary System | Cooling water syem | Red Dot Pointer |
| Recommended Spare Parts / Consumables | Laser Tube and Lens
|
Applicable Materials:
Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal,
granite, marble, tile, ceramic, paper, magic bean, painted metal,
etc.
Materials can be cut:
acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber,
asbestos rubber, paper, PVC, foam, EVA, plastic, etc.
