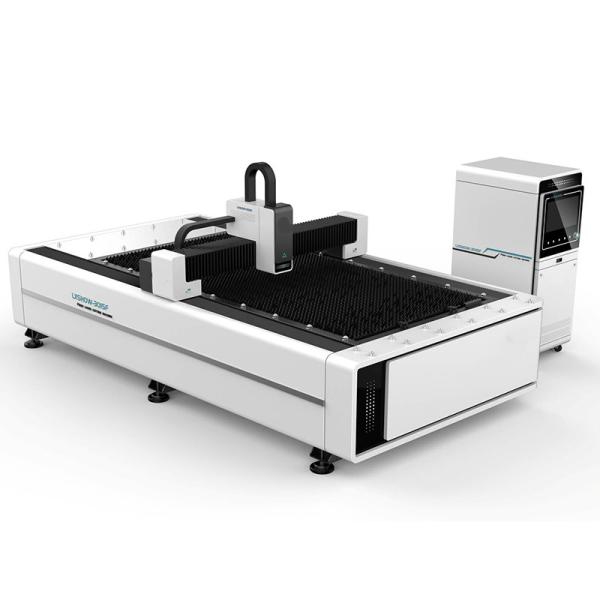

AoShuo 80m/Min 1KW 380V Laser Plate Cutting Machine
Main Features
1) High performance qualified fiber generator,which is high
reliability and longevity of service.
2) Free maintenance for fiber laser generator.Max life reach to
more than 100000 hours.
3) Smooth cutting surface,little deformation,pretty leveling
appearance.
4) Import transmission parts and servo motor, high dynamic movement
performance, high cutting precision.
5) Dedicated software enables graphic or text into instantly
designed pr processed.
Product Application
Our fiber laser cutting machine are designed for use in both
craftwork and industry. The modular construction with high-quality
components guarantees quality for the most demanding applications.
Application Materials
Fiber Laser Cutting Equipment is suitable for metal cutting like
stainless steel sheet, mild steel plate,carbon steel sheet, alloy
steel plate, spring steel sheet, iron plate, galvanized iron,
galvanized sheet, aluminum plate, copper sheet, brass sheet, bronze
plate, gold plate, silver plate, titanium plate, metal sheet, metal
plate, etc.
Application Industries
Widely used in Aerospace navigation, kitchen applicance, electic
control box, high-resolute device, mechanical equipment, electrical
equipment, lighting, posters, auto parts, display equipment,
hardware and metal processig
project | parameter | unit |
Processing size | (L) | 3000 | mm |
| (W) | 1500 | mm |
X/Y axis positioning accuracy | ±0.05 | mm |
X/Y axis repeatable positioning accuracy | ±0.03 | mm |
X/Y maximum positioning speed | 80 | m/min |
Laser generator power | 1000 | W |
Cutting capacity: carbon steel plate | 12 | mm |
stainless steel | 6 | mm |
aluminum | 4 | mm |
brass | 3 | mm |
Maximum acceleration of X/Y | 1.5 | G |
Motion stroke (axis) | X | 3020 | mm |
| Y | 1520 | mm |
| Z | 150 | mm |
Number of phase | 3 | |
Power rating | 380 | V |
frequency | 50 | Hz |
