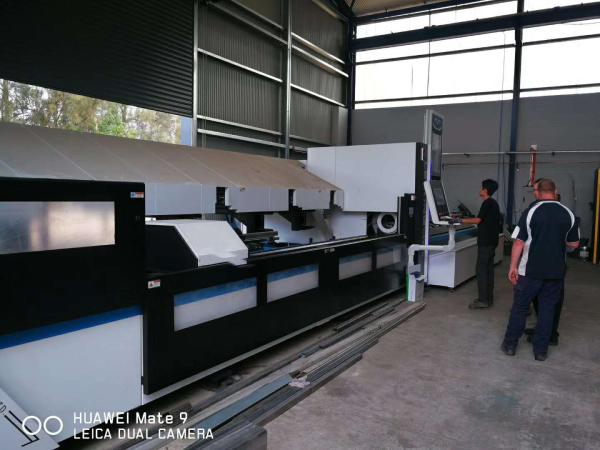

RL3015 1070nm 0.8KW 1KW 1.5KW Laser Cutting Pipe Machine
Max Cutting Length 6000mm; Max Cutting Dia: 220mm
1. High quality laser beam: smaller focal spot, refined cutting
kerfs, higher working efficiency, better processing quality.
2. Rapid cutting speed: the cutting speed is twice as fast as CO2
laser (cutting with equal laser power)
3. Stable performance: laser device lifetime can be up to 400,000
working hours;
4. High photoelectric conversion ratio: its efficiency is 3 times
higher than common co2 laser, and it is energy-saving and
environmentally friendly;
5. Low running costs: gross power is just 20-30% of co2 laser.
6. Low maintenance costs: no working gas for laser device; optical
fiber transmission doesn’t need reflecting mirrors, which save lots
of maintenance costs.
7. Easy operation and maintenance: optical fiber transmission and
no need to adjust the optical path;
8. Flexible optical effects: compact volume and structure, easy to
meet the requirement of flexible manufacturing.
Main configuration:
| Item | Name | Quantity | Brand |
| Laser | 800W fiber laser | 1 SET | Maxphotonics |
| Cutting head | Specialized cutting head | 1 SET | RayTools BT( Switzerland) |
| Machine bed | 1 SET | China |
| Precise Rack | 1 SET | TAIWAN DINSENSE |
| Machine body | Precise linear guide rail | 1 SET | TAIWAN HIWIN/ TAIWAN shac |
| X,Y axis servo and driver | 1 SET | LETRO |
| Reducer system | 1 SET | TAIWAN DINSENSE |
| controller | 1 SET | FRANCE Schneider |
| Machine bed accessories | 1 SET | China |
| Digital cutting system | Controller system | 1 SET | Shanghai cypcut /Shanghai Empower |
| Accessories | Chiller | 1 SET | Teyu |
| Waste recycling equipment | 1 SET | China |
Technical parameters:
| Model | RL3015 |
| Laser Working Medium | ND:YVO4 |
| Laser Wavelength | 1070 nm |
| Power | 800 W/1000W/1500W |
| Beam Quality | ＜0.373mrad |
| Max cutting thickness | 10mm carbon steel |
| Working area | 3000mm×1500mm |
| Positioning Accuracy | ≤±0.05㎜/m |
| Repeatition Accuracy | ≤±0.05㎜/m |
| Power Supply | 380V/50Hz |
Application of Laser Cutting Pipe Machine:
Application Materials: 2000W Laser Cutting Pipe Machine is suitable
for metal cutting with Stainless Steel Sheet, Mild Steel Plate,
Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron
Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper
Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate,
Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries: 800mm/s Laser Cutting Pipe Machine are
widely used in manufacturing Billboard, Advertising, Metal Letters,
LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal
Processing, Metals Components and Parts, Racks & Cabinets
Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting,
etc.
500w fiber Speed for example:
| Material | m/min |
| carbon steel 1mm | 8 |
| carbon steel 2mm | 4.2 |
| carbon steel 3mm | 2.1 |
| carbon steel 4mm | 1.2 |
| stainless steel 1mm | 7.2 |
| stainless steel 1.5mm | 3 |
| stainless steel 2mm | 1.8 |
| galvanized sheet0.8mm | 5 |
| galvanized sheet1.2mm | 2.6 |
| galvanized sheet1.5mm | 1.8 |
