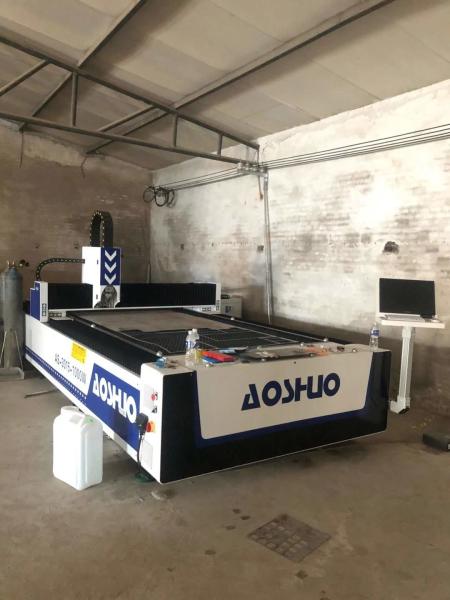

2040 AoShuo 80m/Min Metal Fiber Laser Cutting Machine
Fiber laser cutting machine adopting world famous fiber laser
source and laser mech cutting head and dynamic focus system, it can
cut and punch different kinds of metal material with high precision
and high speed. Since laser is transmitted by fiber , it is no need
to maintenance or adjusts the laser optical path , it greatly
reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of
metal processing .
Product Features
1. Excellent beam quality: Smaller focus diameter , high work
efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3. High Stability: Adopt superior quality fiber laser, stable
performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2
laser cutting machine, Fiber laser cutting machine has 3 times
photoelectric conversion and with energy saving & friendly
environment .
1. Low cost: The whole power consumption is only 20-30% of CO2
laser cutting machine.
2. Low maintenance cost: It is with Optical fiber line
transmission, no need reflector lens, can save a lot of maintenance
cost.
3. Easy Operation : Fiber Line transmission, no adjustment of
optical path.
4. Super-flexible optical effect : small volume, compact structure,
easy to flexible manufacturing requirements .
Product Parameter
project | parameter | unit |
Processing size | (L) | 3000 | mm |
| (W) | 1500 | mm |
X/Y axis positioning accuracy | ±0.05 | mm |
X/Y axis repeatable positioning accuracy | ±0.03 | mm |
X/Y maximum positioning speed | 80 | m/min |
Laser generator power | 1000 | W |
Cutting capacity: carbon steel plate | 12 | mm |
stainless steel | 6 | mm |
aluminum | 4 | mm |
brass | 3 | mm |
Maximum acceleration of X/Y | 1.5 | G |
Motion stroke (axis) | X | 3020 | mm |
| Y | 1520 | mm |
| Z | 150 | mm |
Number of phase | 3 | |
Power rating | 380 | V |
frequency | 50 | Hz |
Application Materials
Fiber Laser Cutting Equipment is suitable for metal cutting like
stainless steel sheet, mild steel plate,carbon steel sheet, alloy
steel plate, spring steel sheet, iron plate, galvanized iron,
galvanized sheet, aluminum plate, copper sheet, brass sheet, bronze
plate, gold plate, silver plate, titanium plate, metal sheet, metal
plate, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture
billboard, advertising, signs, signage, metal letters, LED
letters,kitchen ware, advertising letters, sheet metal processing,
metals components and parts, ironware, chassis, racks &
cabinetsprocessing, metal crafts, metal art
ware, elevator panel cutting, hardware, auto parts, glasses frame,
electronic parts,nameplates, refrigeration machinery, agricultural
machinery, food machinery, kitchen stainless steel countertops,
aerospace,railroad locomotive, auto parts manufacturing, car body
processing, medical equipment, smart home, home appliances,
kitchenequipment, fitness equipment, machinery manufacturing, sheet
metal processing. etc.
